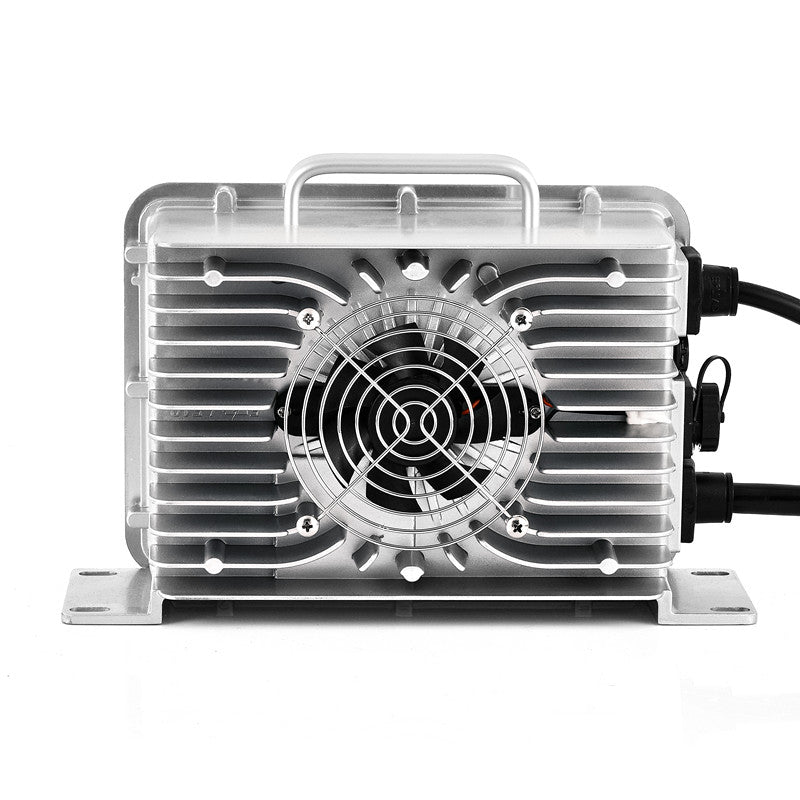

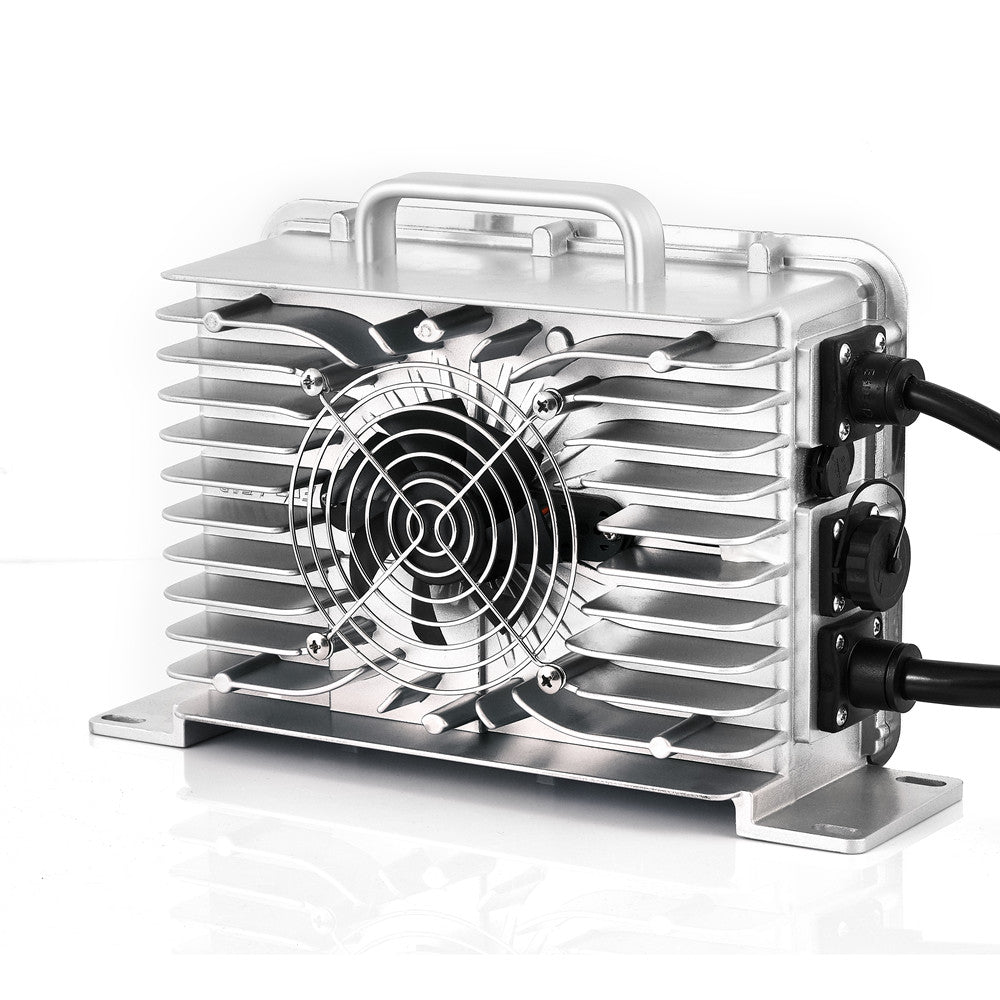

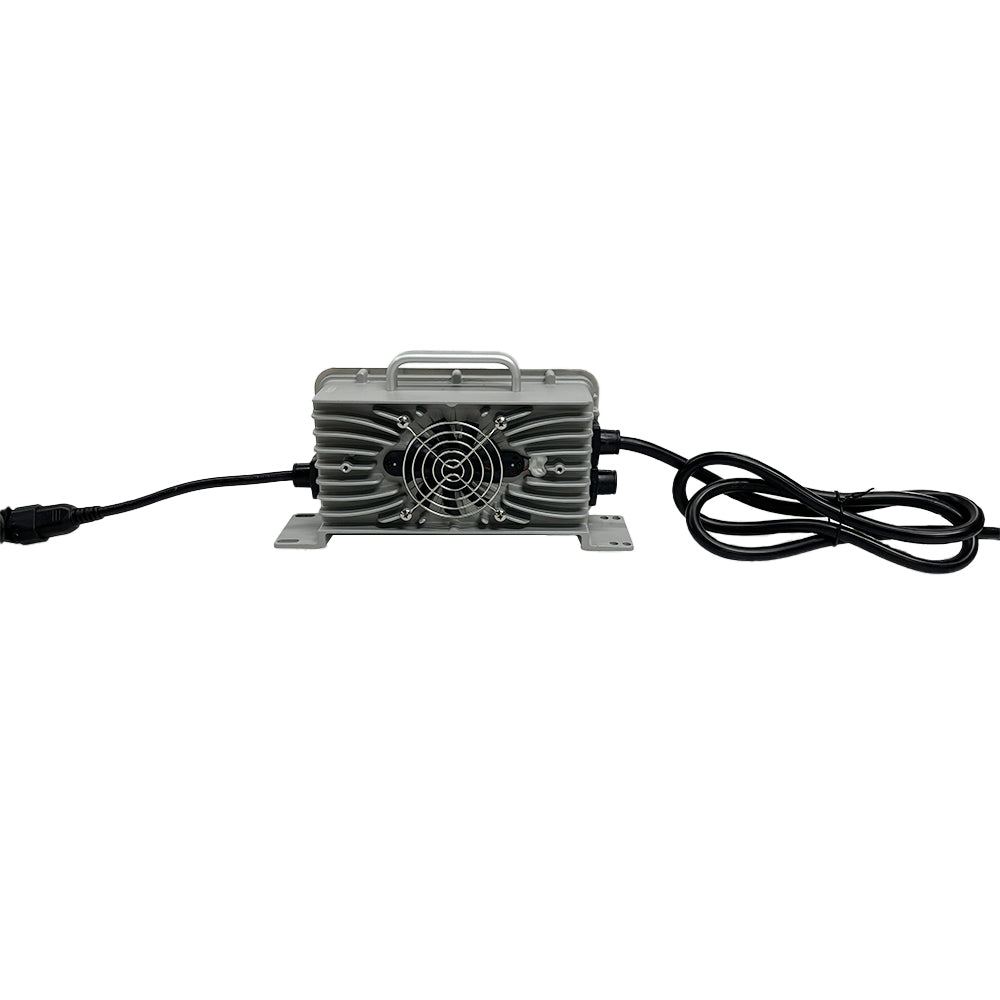

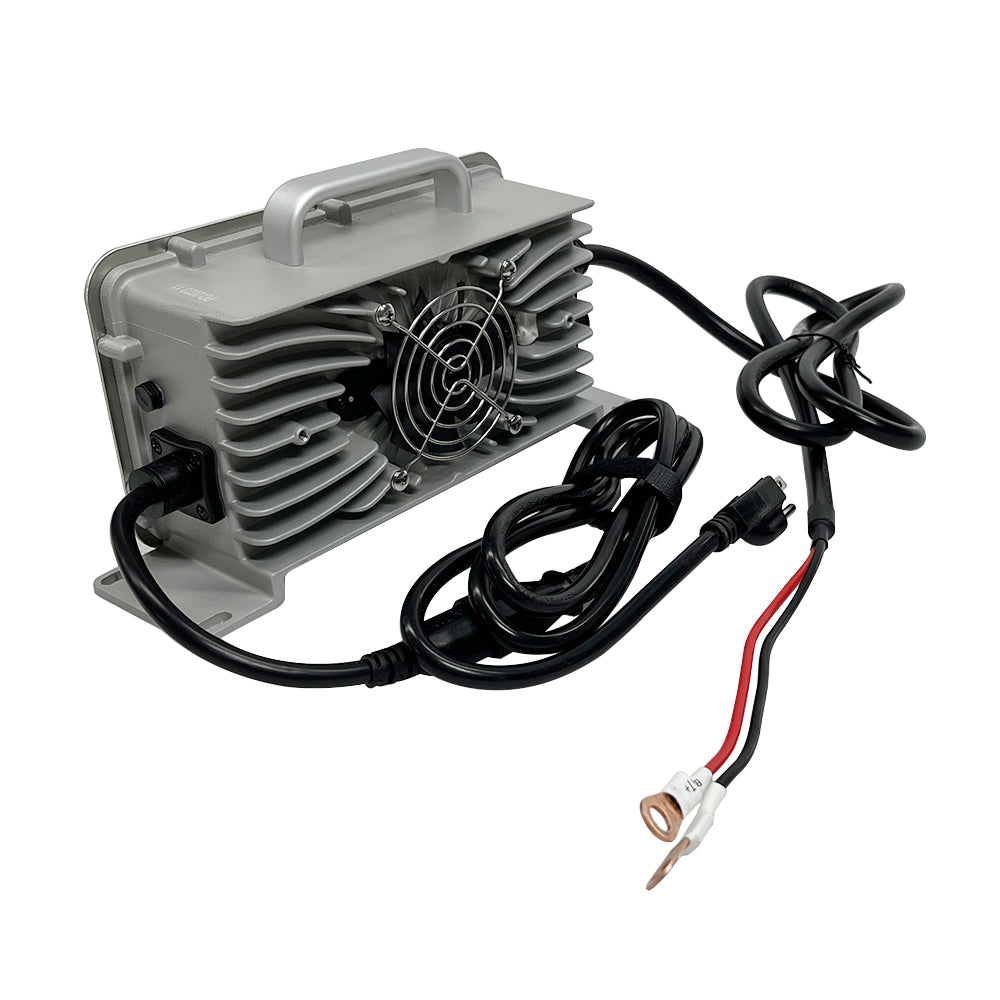

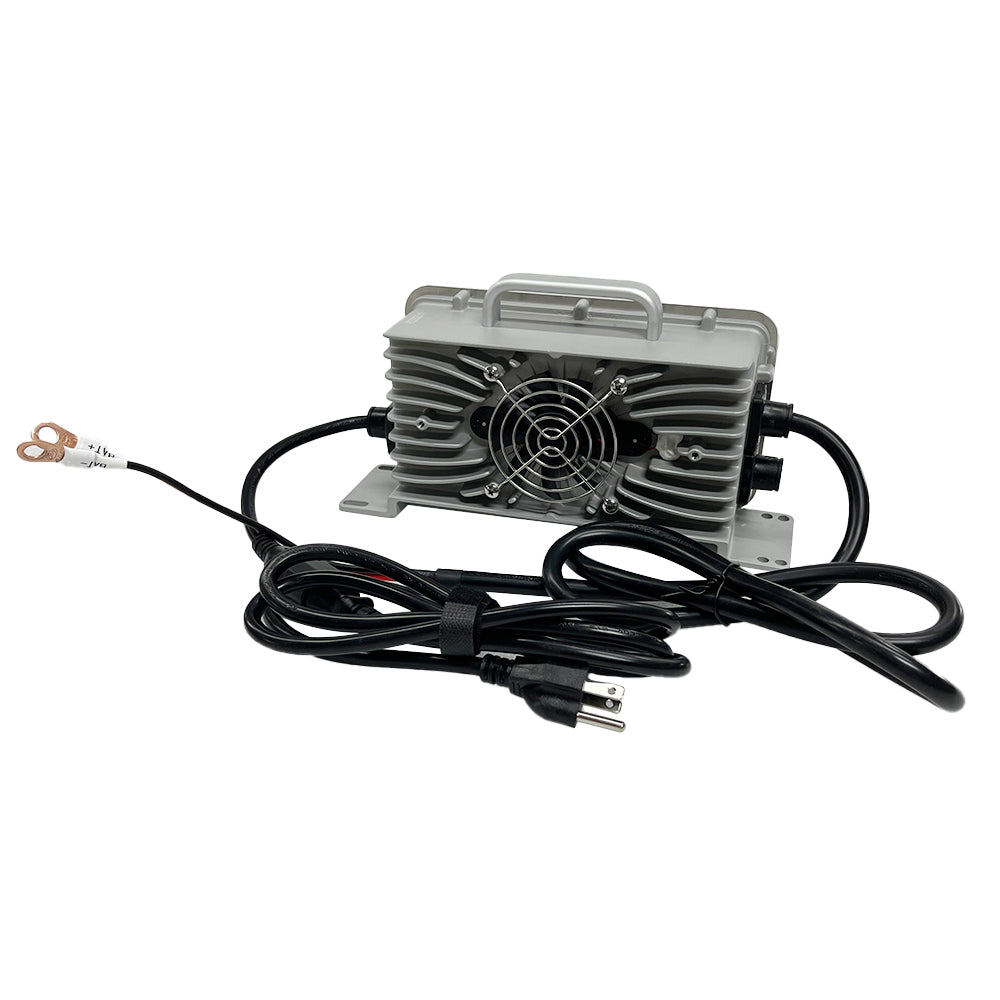

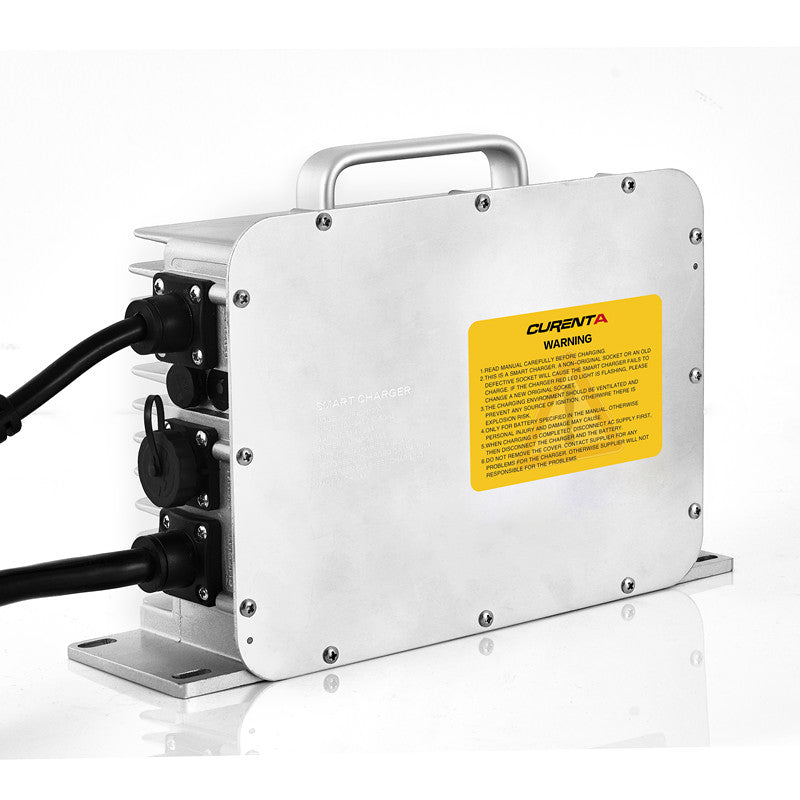

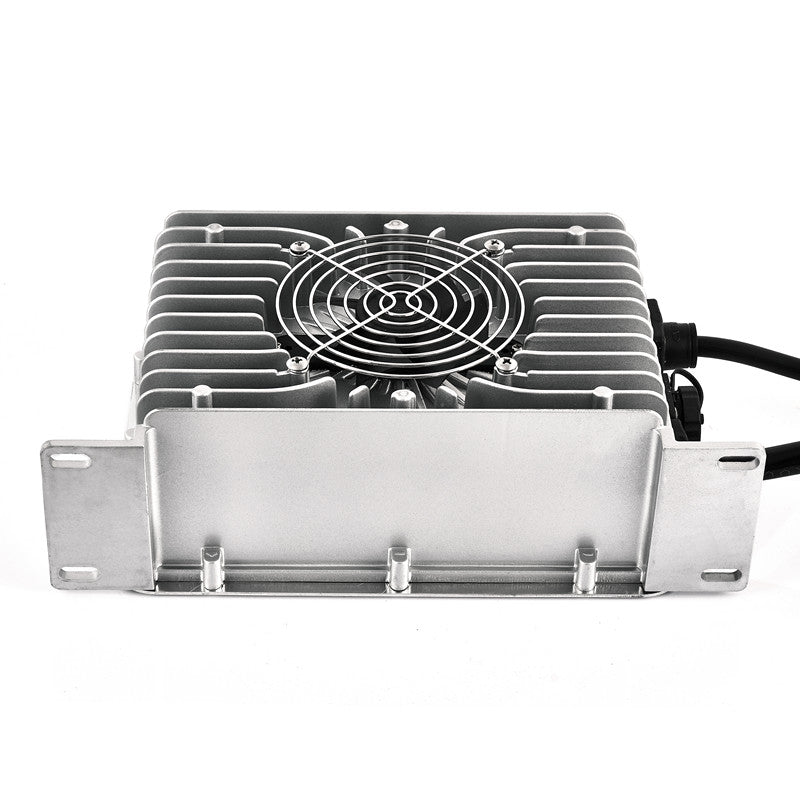

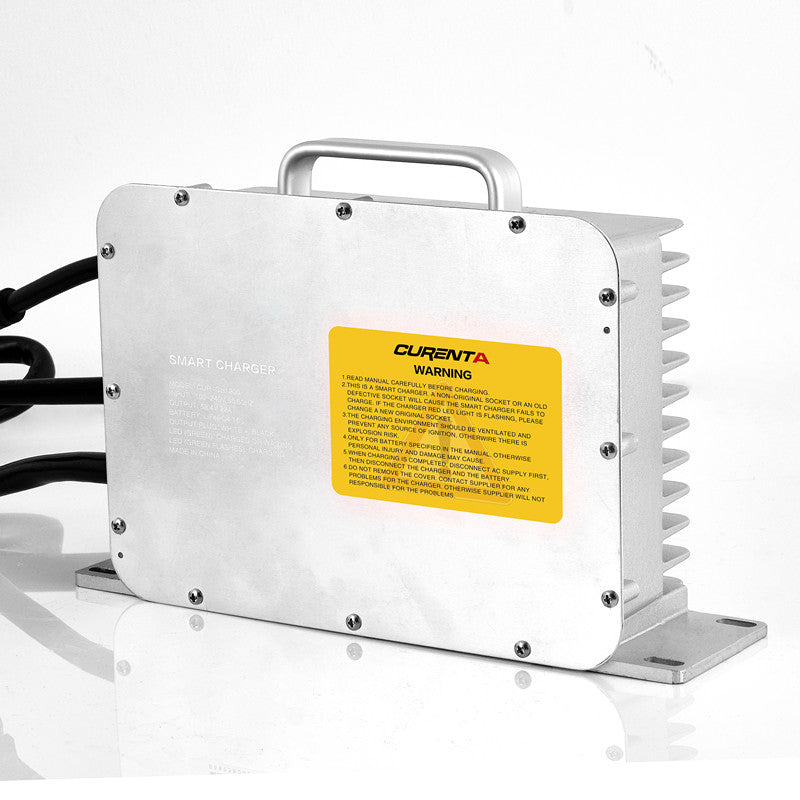

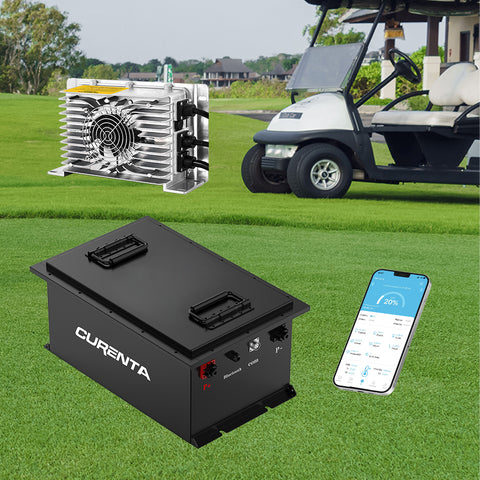

CURENTA 58.4V 48V 22A 1200W LiFePO4 Battery Smart Fast Charger on Board Golf Cart EV Motorcycle Electric Vehicle
CURENTA 58.4V 48V 22A 1200W LiFePO4 Battery Smart Fast Charger on Board Golf Cart EV Motorcycle Electric Vehicle
Couldn't load pickup availability
Curenta 58.4V 22A Golf Cart Lithium Battery Charger
Features
1. The AC input of Curenta charger can be replaced with different input cables, wide input voltage 90-264V, suitable for global power supply.
2. PFC circuit, high efficiency>95%
3. Adopting ST brand (automotive grade) micro-controller, with high stability.
4. Certifications: CE, FCC
5. Support Small Quantity, Fast Delivery Time of 5-10 days.
7. Waterproof: IP67
Charger Specifications
|
Model |
CUR-CHA-1200W |
|
Max output voltage |
58V~58.4V |
|
Output current |
22A±5% |
|
Battery specification |
51.2V |
|
Max. output power |
1200W |
|
Input voltage |
R90-132Vac £180-260Vac □90-260Vac |
|
Dimension |
282*140*80mm |
|
Weight |
3.0kg |
|
Shell material |
Aluminum |
Electrical Characteristics
1. Input characteristic
|
No. |
Item |
Technical Parameters |
Remarks |
|
1 |
Rated input voltage |
R110Vac £220Vac |
|
|
2 |
Input voltage range |
R90-132Vac □180-260Vac □90-260Vac |
|
|
3 |
AC input voltage frequency |
50～60 Hz |
2. Output characteristic and charge stages
|
No. |
Item |
Technical Parameters |
Remarks |
|
1 |
Nominal voltage |
58.4V |
|
|
2 |
Output voltage |
29V ~ 58.4V |
|
|
3 |
Precharge |
Iout, 5A |
29V≤Vout≤39V |
|
4 |
Constant current |
Iout =22A |
39V≤Vout≤53V |
|
5 |
Constant voltage |
Vout, 3~20A |
Vout≥53V |
|
6 |
Transition Current |
Iout, 5A |
53V≤Vout≤54V Full-charged：Iout＜1A |
|
7 |
Power efficiency |
≥91% |
Vin=220Vac, rated load |
Charger Functions
1. Input low-voltage, over-voltage protection;
2. Overheating protection;
3. Output empty-load protection, power loss activation;
4. Output short circuit/reverse connection protection;
5. Output over current/over voltage protection;
6. Automatically shutdown when fully charged.
Connectors

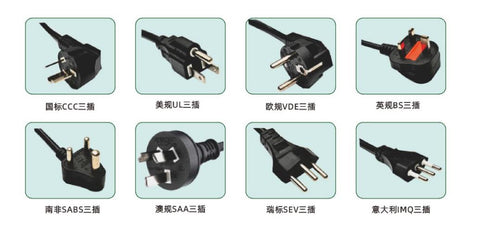

1. AC input: optional

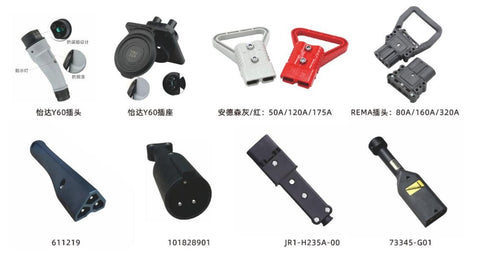

2. DC output: optional
