Curenta

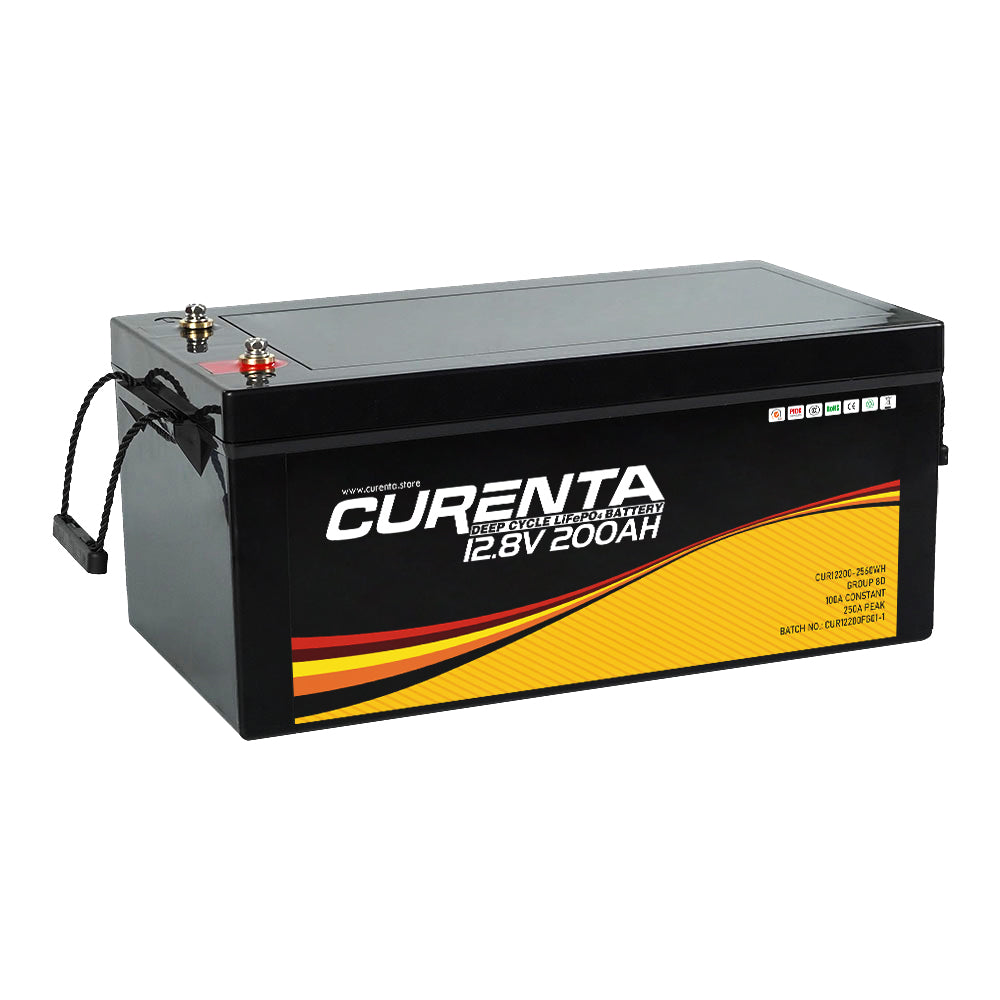

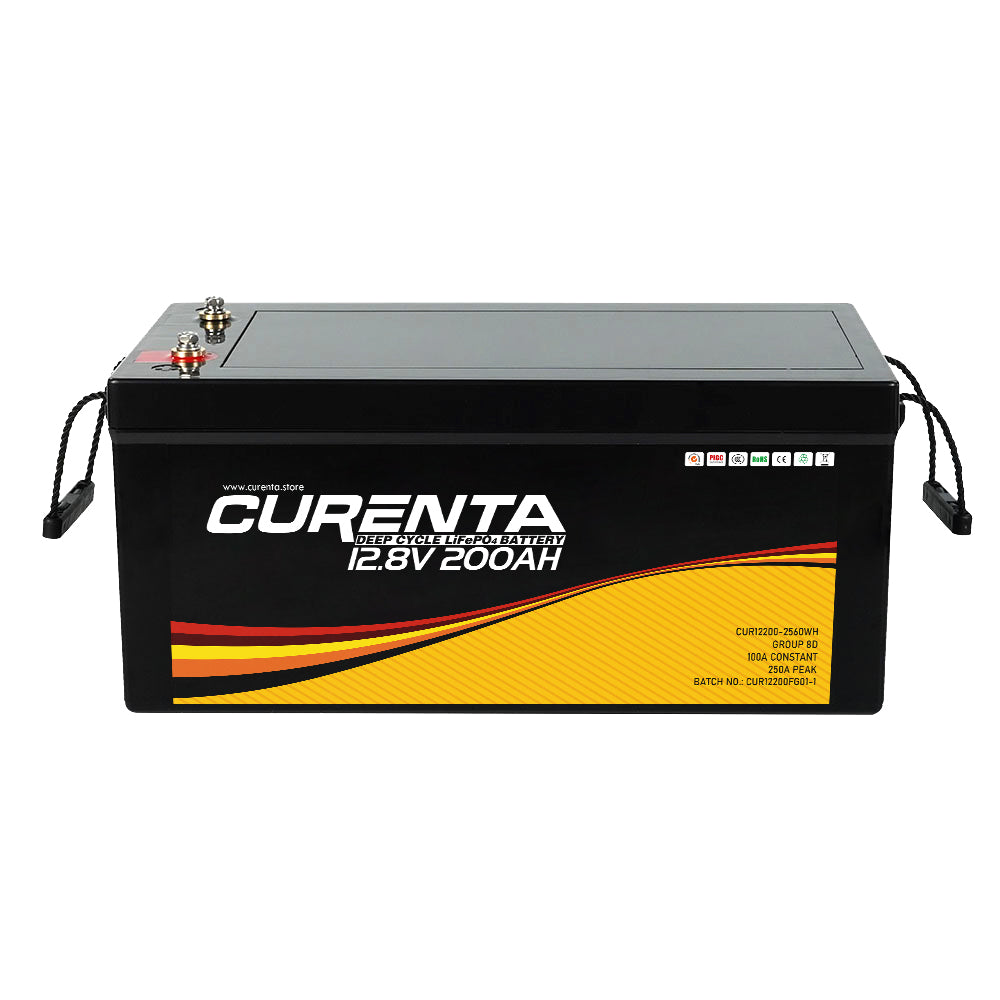

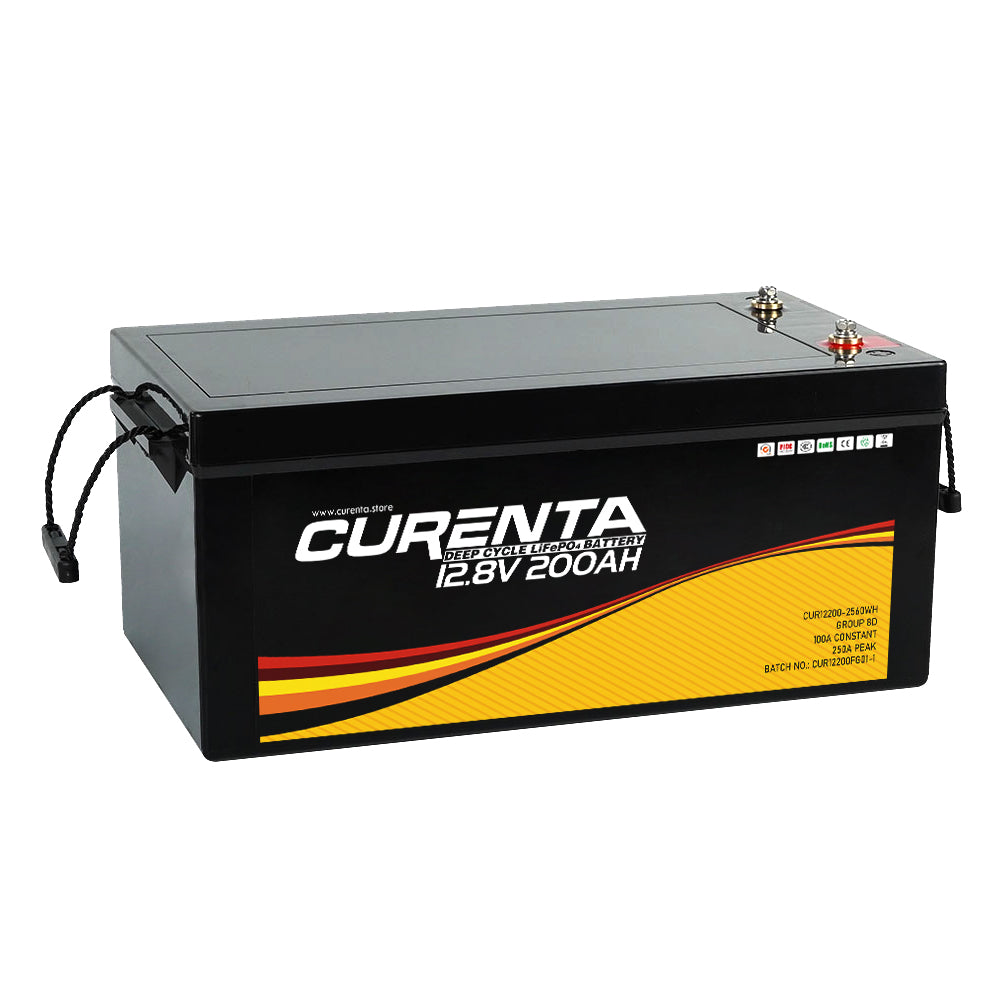

CURENTA 12V 200Ah Marine RV Lithium Iron Phosphate Battery For RV Trolling Motor Yacht LiFePO4 Li-ion Battery
CURENTA 12V 200Ah Marine RV Lithium Iron Phosphate Battery For RV Trolling Motor Yacht LiFePO4 Li-ion Battery
Couldn't load pickup availability
Rechargeable 12V 200Ah Lithium Iron Rhosphate LiFePO4 Li-ion Battery for RV/Marine/ESS
Features
LiFePO4 battery is very eco-friendly, which contains no toxic material and has long life span that can reach more than 4000 cycles, with a high DOD and low self-discharge rate. Compare with Lead-aicd battery, LiFePO4 battery is smaller, lighter, but with larger capacity and it is more durable and more greener. Besides, LiFePO4 battery is one of the safest rechargeable battery, which has excellent performance at high temperature situation. What's more, the battery also has built-in BMS to protect the battery from over-charge/discharge, over temperature, short circuit etc.
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
200Ah |
|
Energy |
2560Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>6000 cycles@1C 80% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
20-50A |
|
Max. Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Max. Pulse Current |
250A(10S) |
|
Discharge Cut-off Voltage |
10V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP65 |
|
Cell&Method |
4S |
|
Package |
Plastic ABS Case |
|
Dimensions(in.) |
20.67x 9.45x 8.67 |
|
Weight(lbs.) |
41 |
|
Display screen |
Optional |
| Bluetooth | Optional |
Brand Advantages
1. Professional technical team: Curenta's R&D technical team has received more than 20 inventions and application patents.
2. Unique pack technique: Curenta possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.
3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..
4. Professional sales team: Curenta possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.
5. Punctual delivery: Curenta has strict production plan to promise punctual delivery of the goods.
6. Perfect after-sales service: Curenta has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.
Applications
Curenta LiFePO4 battery is safe and qualified. Lithium Iron Phosphate chemistry nearly eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Curenta Lithium battery widely use for Forklift/Marine/ Elite lithium battery are widely user for Electric Car/Electric Bicycle/Golf Car Car/Forklift/Marine/Yacht/Caravan/Boat/Vessel/Touring Car/Scooter/E-bike/AGV/ESS/Electrical Vehicle
OEM/ODM
1. All models of shell material, battery dimension, color, label can be customized.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
Certifications
Products are with CE, UKCA, MSDS, UN38.3, BIS, etc. approved;
Factory is with ISO9001, ISO14001 and ISO45001 certificated.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
Q1. Does the battery includes BMS?
R1: Yes, all batteries provided by Curenta are with built-in BMS to protect the battery.
Q2. Can the battery be connected in series or parallel?
R2: Yes, Curenta 12V 200Ah supports max. 4pcs in series connection and max. 3pcs in parallel connection.
Q3.Can we connect different (model, brand) LiFePO4 batteries in parallel or series by ourselves?
R3: No, only the same model and same brand batteries can be connected in series or parallel, LiFePO4 battery has high requirement on consistency, connecting batteries randomly may affect the cycle life or even damage the batteries.
Q4. What is your warranty?
R4: Curenta provides 3-5 years warranty for our products, besides, we promise lifetime technical support for the batteries.
Q5. How can you ship the battery?
R5: Normally, we ship the battery by sea to your door, which takes more than 1 month delivery.
If your order is urgent, battery can be shipped by air, like UPS, FEDEX or DHL, with around 8 days delivery.
Q6. What is the lead time of your battery?
R6: We have in-stock batteries, goods can be sent within 7 days from order confirmation.
