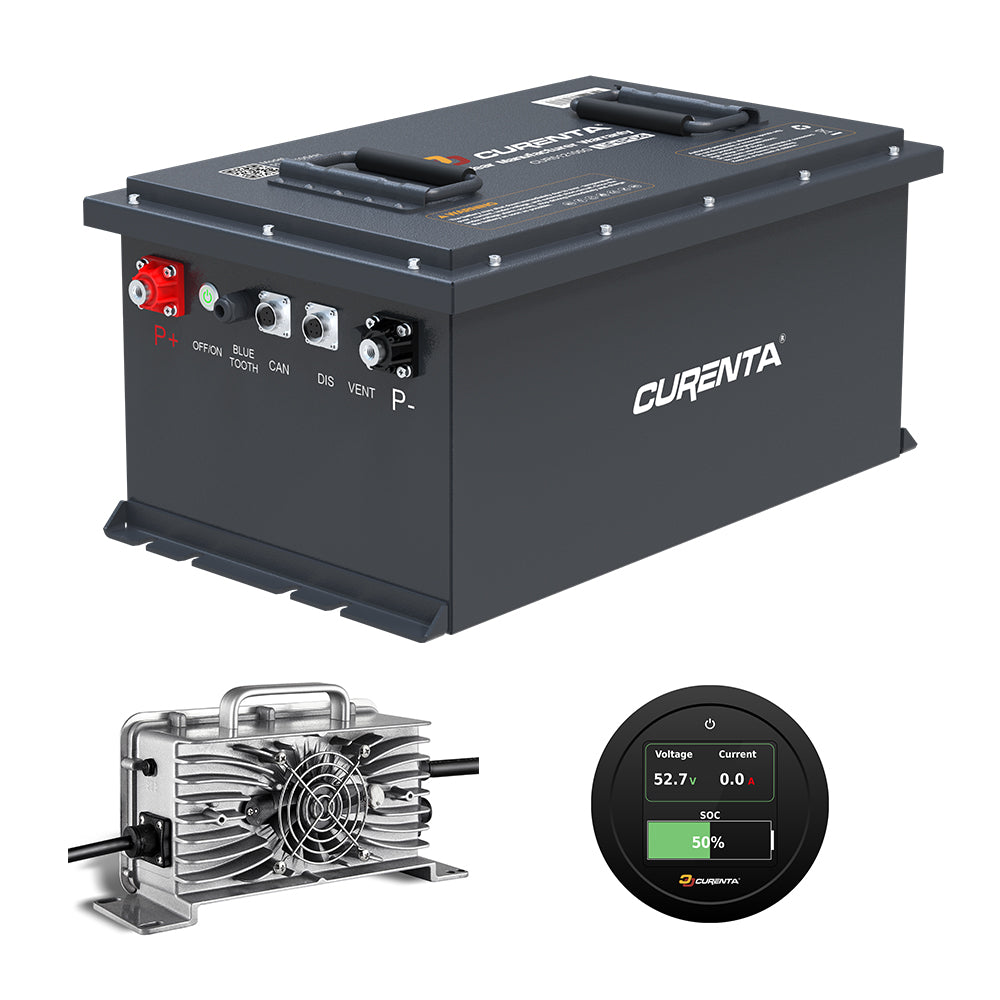

CURENTA 48V 150Ah Lithium Iron Golf Cart Battery 51.2V 150Ah Bluetooth LiFePO4 Battery 35A Fast Charger 2.8' Touch LCD Screen Conversion kit for Golf Cart
CURENTA 48V 150Ah Lithium Iron Golf Cart Battery 51.2V 150Ah Bluetooth LiFePO4 Battery 35A Fast Charger 2.8' Touch LCD Screen Conversion kit for Golf Cart
Couldn't load pickup availability
48V 160Ah 8KWh Golf Cart Lithium Iron Phosphate Battery Conversion Kit
FeaturesÂ
- Safety Performance: safest Lithium Iron Phosphate battery, CE IEC UN38.3 approved, built-in BMS
2. Long Cycle Life: > 4000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature - Low self-discharge rate: <Â 3% month
Parameters
|
Electrical Characteristics |
Nominal Voltage |
51.2V |
|
Nominal Capacity |
160Ah |
|
|
Energy |
7680Wh |
|
|
Internal Resistance |
â€10mΩ |
|
|
Cycle Life |
>4000 cycles@1C 80% DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100%@0.5C |
|
|
Efficiency of Discharge |
96-99% @1C |
|
|
Standard Charge |
Charge Cut-off Voltage |
58.4±0.2V |
|
Charge Mode |
0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) |
|
|
Recommend Charge Current |
100A |
|
|
Max. Charge Current |
100A |
|
|
Standard Discharge |
Max. Continuous Discharge Current |
200A |
|
Max. Pulse Current |
400A(35S), 600A(3S) |
|
|
Discharge Cut-off Voltage |
40V |
|
|
Environmental |
Charge Temperature |
0ÂșC to 45ÂșC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ÂșC to 65ÂșC(-4F to 140F)@60±25% Relative Humidity |
|
|
Storage Temperature |
0ÂșC to 45ÂșC(32F to 104F)@60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP67 |
|
|
Mechanical |
Cell&Method |
16S |
|
Package |
Metal case |
|
|
Dimensions(in.) |
22X 12.1X 10.5 |
|
|
Weight(lbs.) |
135 |
|
|
Terminal |
M8 |
|
|
Display screen |
Yes |
|
|
Bluetooth |
Yes |
Â
Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 4,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
WARRANTY
The period of warranty is 60 months from the date of shipment. Curenta guarantees to offer free replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse. Replacement process should be completed within 7 days.
CAPACITY
150 ampere hours. Lithium batteries provide consistent power for all 150 amp hours. Curenta LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges.
LIFE CYCLES (BATTERY LIFESPAN)
Up to 80% capacity for 4,000 cycles in recommended conditions. The typical SLA battery has 400 cycles. Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Applications
Golf Cart(YAMAHA,E-Z-GO,Club Car,ICON,POLARIS,ADVANCED EV,BINTELLI,VIVI EV,KODIAK,PILOTCAR,EPIC CARTS,HONOR LSV,Star EV,LVTONG,LEADROAD,LANTO...)
Â
Packaging & Shipping
Package:Â With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping:Â By air, by sea, by express, railway transportation and so on.
FAQ
Q1. Who are we?
Curenta is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.We had sell the 12V 24V 36 48V and powerwall batteries to America,Europe, Africa, Asia, Australia... ...
Q2. How do you guarantee battery quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3: What kind of certificates do you have?
A: CE,IEC,MSDS,UN38.3 and other specific required certification for the bulk order.
Q4: Any minimum order quantity required?
A4: No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q5: How about the price?
A5: The price is negotiate and gradually ,it is depend on the quantity and package, please fell free to contact us with your requirements.
Q6: What about after-sale service?
A6: Curenta Battery offers 5-year warranty for free replacement. Both our sales team and maintenance team would help you with any question about battery use.
