CURENTA 12V 100Ah LiFePO4 Battery
1. Safety Performance: safest Lithium Iron Phosphate battery, CE IEC UN38.3 approved
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient

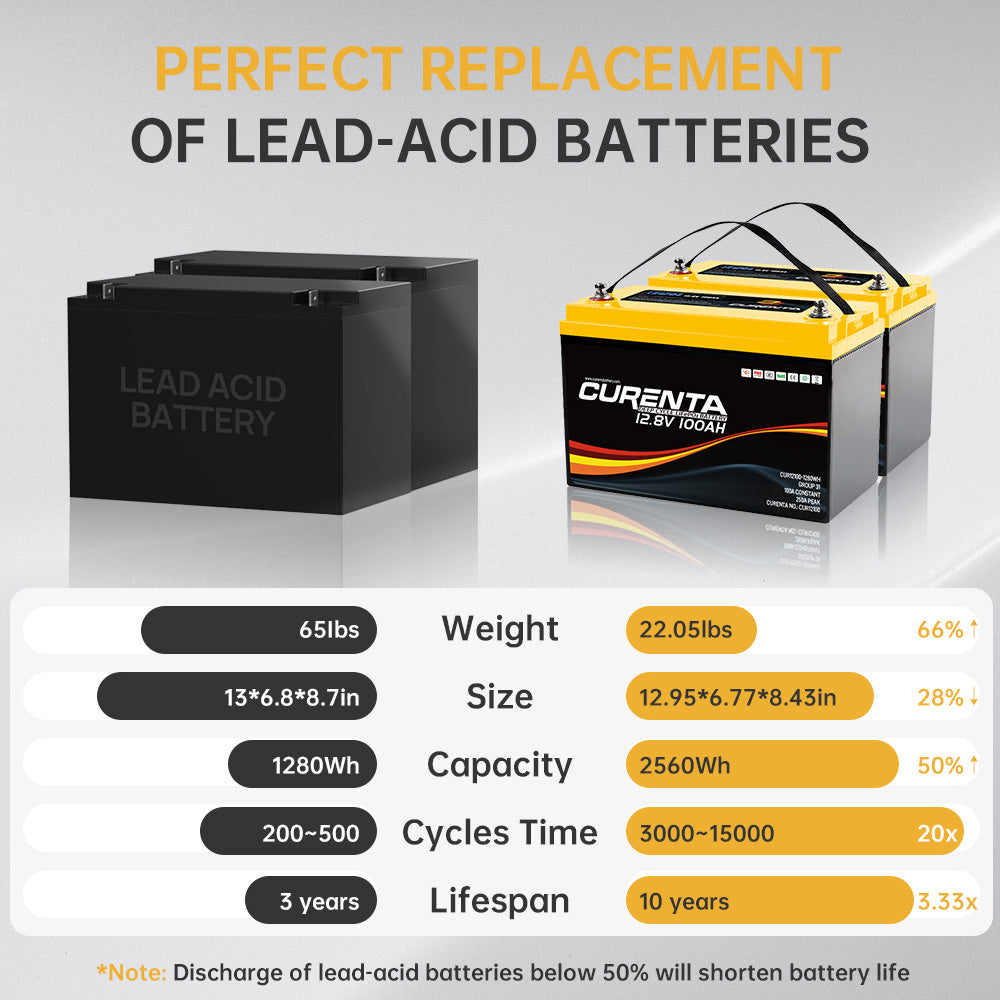

4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Excellent performance at high temperature
Â
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance | â€10mΩ | |
| Cycle Life | >4000 cycles@1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.5C | |
| Efficiency of Discharge | 96-99% @1C | |
| Standard Charge | Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | |
| Recommend Charge Current | 20-50A | |
| Max. Charge Current | 100A | |
| Standard Discharge | Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 250A(10S) | |
| Discharge Cut-off Voltage | 10V | |
| Environmental | Charge Temperature | 0ÂșC to 45ÂșC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ÂșC to 60ÂșC(-4F to 140F)@60±25% Relative Humidity | |
| Storage Temperature | 0ÂșC to 40ÂșC(32F to 104F)@60±25% Relative Humidity | |
| Water Dust Resistance | IP65 | |
| Mechanical | Cell&Method | 4S1P |
| Package | ABS plastic case | |

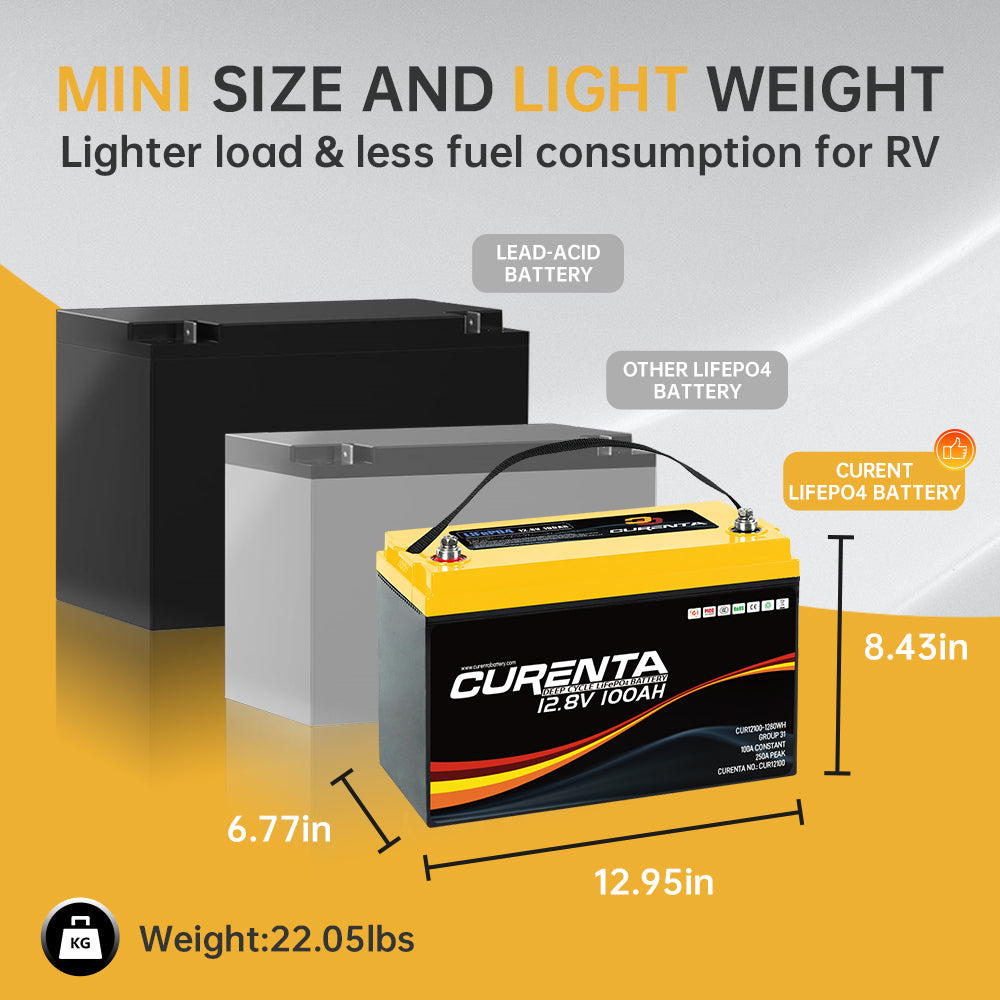

| Dimensions(in.) | 12.95x 8.43x 6.77 | |
| Weight(lbs.) | 22.05 | |
| Terminal | M8 | |
| Display screen | Optional | |
| Bluetooth | Optional |
Applications

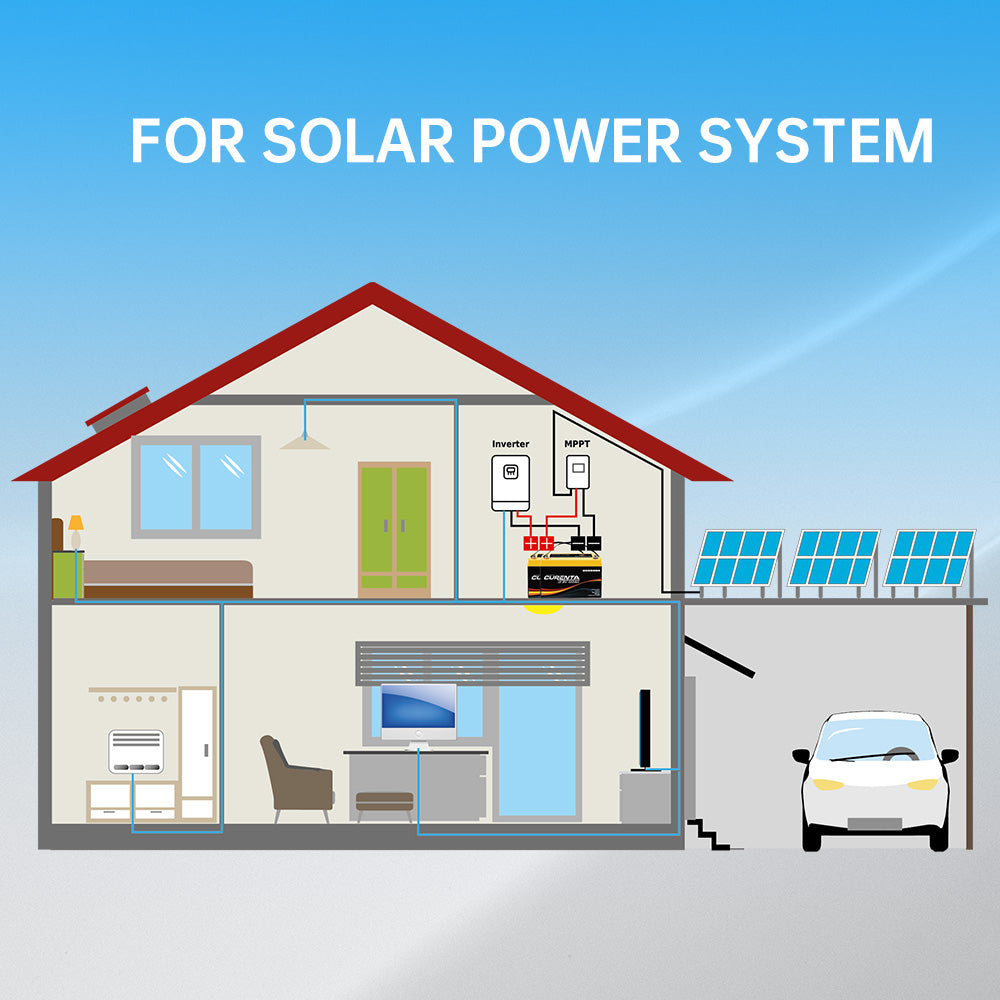

âŠSolar and wind energy storage system
âŠEPS and UPS battery backup
âŠSignal system, emergency lighting system , security system
âŠTelecommunication Equipment
âŠPower source for portable devices or tools
⊠RV, marine, golf cart, ESS, EV, camping etc.
OEM/ODM
1. All models of shell material, battery dimension, color, label can be customized.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
Certifications
Products are with CE, UKCA, MSDS, UN38.3, BIS, etc. approved;
Factory is with ISO9001, ISO14001 and ISO45001 certificated.
Packaging & Shipping
Package:Â With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping:Â By air, by sea, by express, railway transportation and so on.
Q&A
Q1. Does the battery includes BMS?
R1: Yes, all batteries provided by Curenta are with built-in BMS to protect the battery.
Q2. Can the battery be connected in series or parallel?

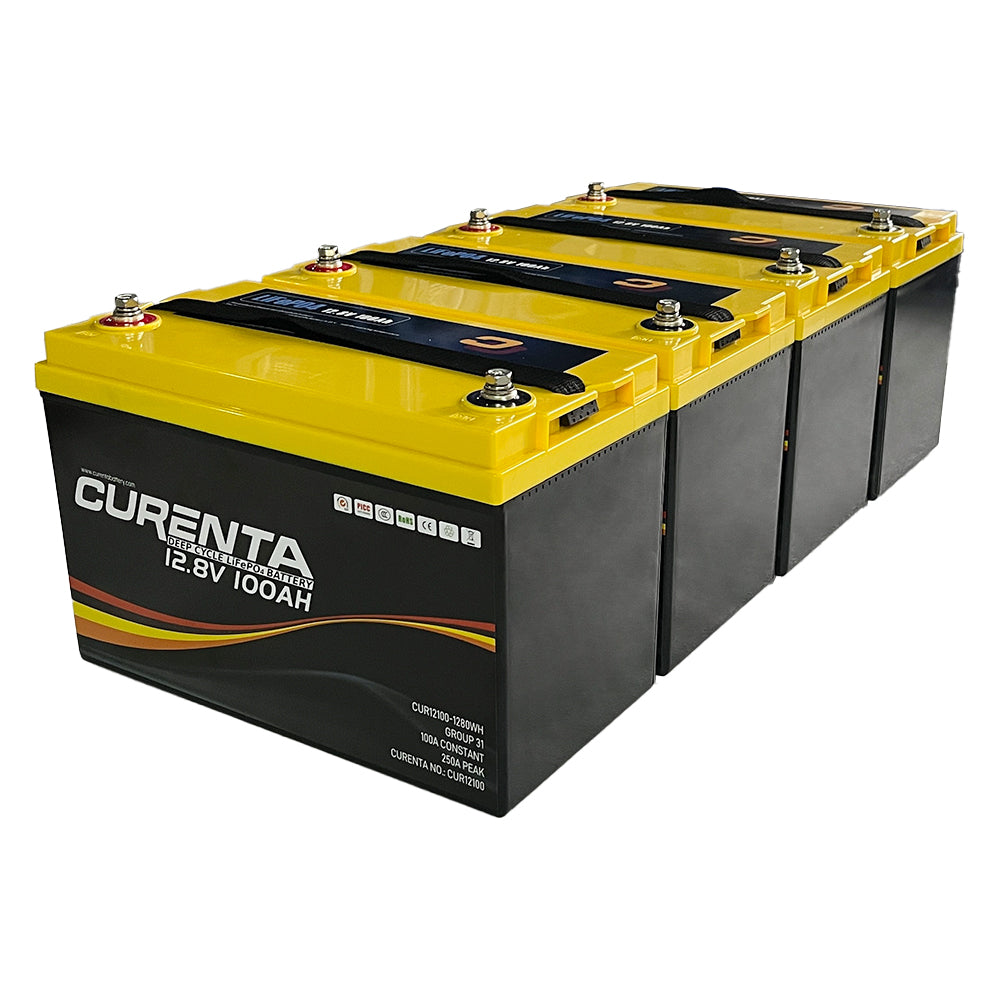

R2: Yes, Curenta 12V 100Ah supports max. 4pcs in series connection and max. 3pcs in parallel connection.
Q3.Can we connect different (model, brand) LiFePO4 batteries in parallel or series by ourselves?
R3: No, only the same model and same brand batteries can be connected in series or parallel, LiFePO4 battery has high requirement on consistency, connecting batteries randomly may affect the cycle life or even damage the batteries.
Q4. What is your warranty?
R4: Curenta provides 3-5 years warranty for our products, besides, we promise lifetime technical support for the batteries.
Q5. How can you ship the battery?
R5: Normally, we ship the battery by sea to your door, which takes more than 1 month delivery.If your order is urgent, battery can be shipped by air, like UPS, FEDEX or DHL, with around 8 days delivery.
Q6. What is the lead time of your battery?
R6: We have in-stock batteries, goods can be sent within 7 days from order confirmation.
